Λεπτομέρειες:
|
| Λογισμικό λογισμικού: | ΟΝΥΧΑΣ | Ισχύς θερμαντήρα: | 6kW |
|---|---|---|---|
| Αυτόματος βαθμός: | Αυτόματο | Δυναμικό: | AC100-120V/AC220-240V |
| Επεξεργασία μέσων: | Roll to Roll + Auto Feeding + Auto Roll Up | Κατάλληλος τύπος υφάσματος: | Πολυεστέρας & βαμβάκι |
| Χρώμα & Σελίδα: | Πολύχρωμο | Τύπος μελανιού: | Μελάνι εξάχνωσης & μελάνι Pigment |
| Χρήση: | Εσωτερικό και εξωτερικό πεδίο διαφήμισης | Συμβατό λειτουργικό σύστημα: | Windows 7 & Windows 10 |

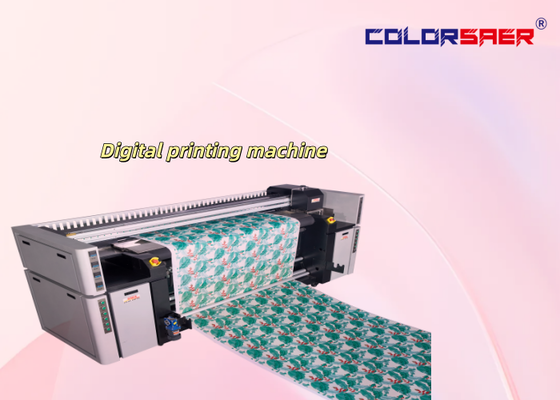

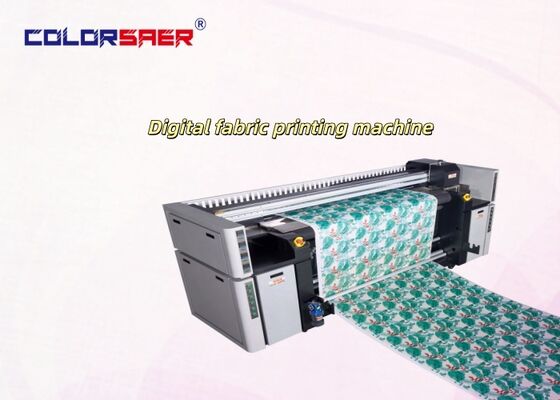

Product name:I3200 4pcs or 8 pcs Print Head Dye Sublimation Printer High Speed 4&8 Color Digital Textile Clothes Printing System
Machine Specifications:
| Product Parameter | |
| Model type | CSR2200 |
| Print head | 3 pieces Epson i3200 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 2200mm |
| Max printing width | 2000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
|
Printing resolution and speed |
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
|
720*1800dpi(6 pass) 35m2/h |
|
Main Features :
Print head: Three Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
X axis and Yaxis:
X axis and Y axis are using AC servo motors.
Guid Rail: Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit ．
FAQ:
1) How can I place order?
A: Contact us about your order details,we will prepare the PI .
2) How about the after-sale service?
A: Machine guarantee 12 month, printheads are no guarantee. We supply the on line technology even machine out of guarantee.
3) I want to open a new business, can you give me some ideas?
A: Yes, we can, please tell me what products you want to make, and your request, we can offer you some projects.
4) How can I pay you?
A: Uaually we accept T/T, Western Union
5) If I buy the machine, can you supply the ink, material, etc also?
A: Yes sure, please use the Original ink, it's better for the printer maintance, we can supply the relate material also.
